Aquatron 4×300

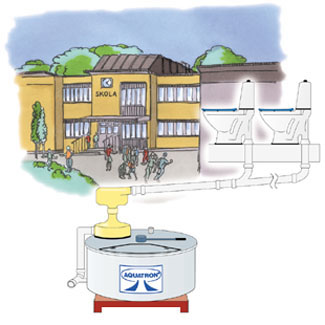

The Aquatron 4×300 is suitable for schools, kindergartens, small office buildings and other medium/large buildings located in places where there is no municipal sewer.

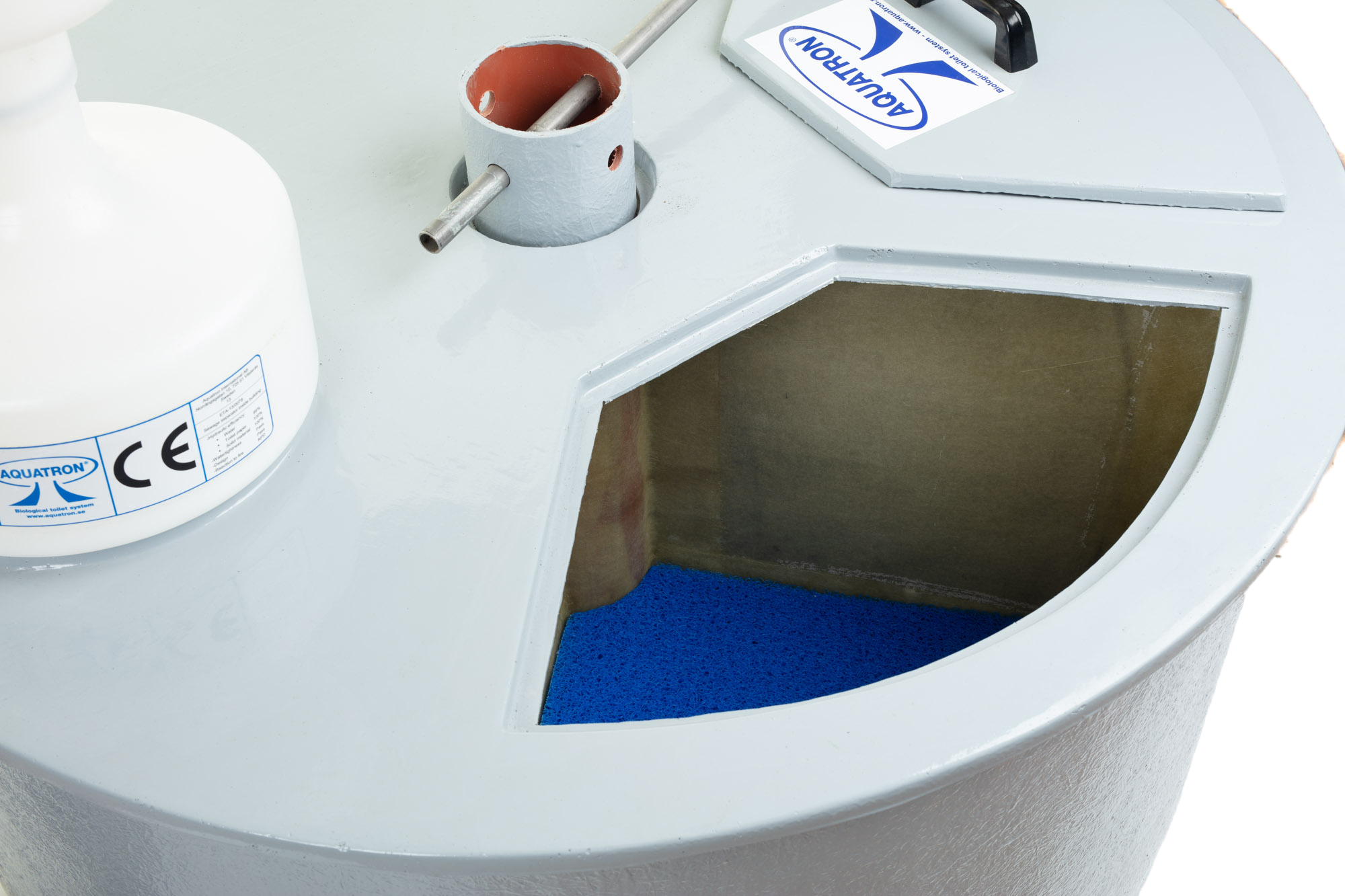

The Aquatron 4×300 has an inner compost bin that is divided into four sections of approximately 300 liters each. The inner, sectioned container is rotatable like a carousel.

The inner container is rotated to a new empty compartment, preferably every quarter or when needed. Emptying takes place when the inner container has rotated one turn (1-2 years later). The feces are then fully composted into mulch that can be used as a soil conditioner.

Aquatron is the ecological system with fresh and easy composting. For those who still want the convenience and hygiene of a standard water-flush toilet.
Our system is suitable from the small holiday home to public buildings. Well proven and loved for over 30 years.
Separate feces and flush water from the source (WC). Reuse!

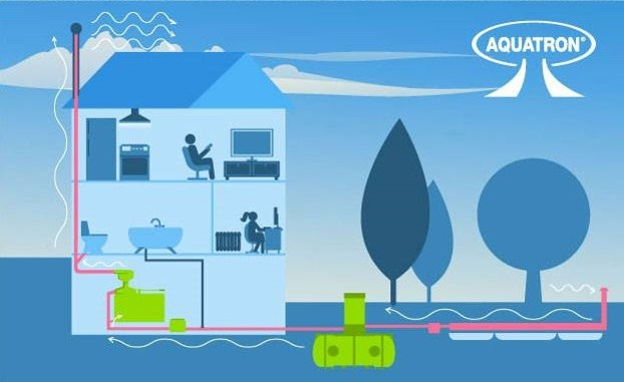

The water is flushed to a separator (without moving parts and energy consumption) where urine and flush water are separated from feces and paper. It is then discharged into a BDT sludge separator (Bath, Dish, Wash) for infiltration into the ground.
The infiltration should be dimensioned for toilet water.
The solid waste is composted in a bio chamber.

Can be installed in all places where the water toilet is approved, solutions are available today to meet all environmental requirements even the highest by using Aquatron’s phosphorus trap or urine separation for your individual drain.

No need for electricity as for incinerators and vacuum toilets.
No costs for a sludge removal truck.

Installation
As the flushing liquid is used as a means of transporting the waste, the Aquatron system can be placed at a suitable distance from the toilet seat.

There are several cases where the installation is 50-60 meters away

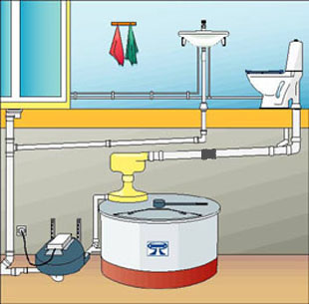

Examples of how Aquatron systems can be installed
1. Placement in basement.
2. Placement in excavated space in the foundation of the house or under the base plate.
3. With a pump (accessory), the location can be below the infiltration.
4. Separate house. The pipe length can be long as long as you stick to the standard case, we know customers who have 60 meters of pipe.
5. WC with outlet pipe backwards with the Aquatron system on the other side of the wall.

Purification effects
As Aquatron is part of the sewage system, the degree of purification depends on all the components involved.
A closed-loop solution is achieved by composting the feces and returning the nutrient salts to the soil.

The sludge from the 2-chamber well can also be easily returned to the Aquatron with a sludge dewaterer.
Thanks to the simplicity and robustness of the system, the user can easily manage everything himself.

The Aquatron system replaces the need for a 3-chamber well that must be emptied by suction truck, instead letting nature take care of it through decomposition.

The flushing water is led to a 2-chamber well where it is mixed with other BDT water and then treated in an approved infiltration according to the Swedish Environmental Protection Agency’s PM on Aquatron.
