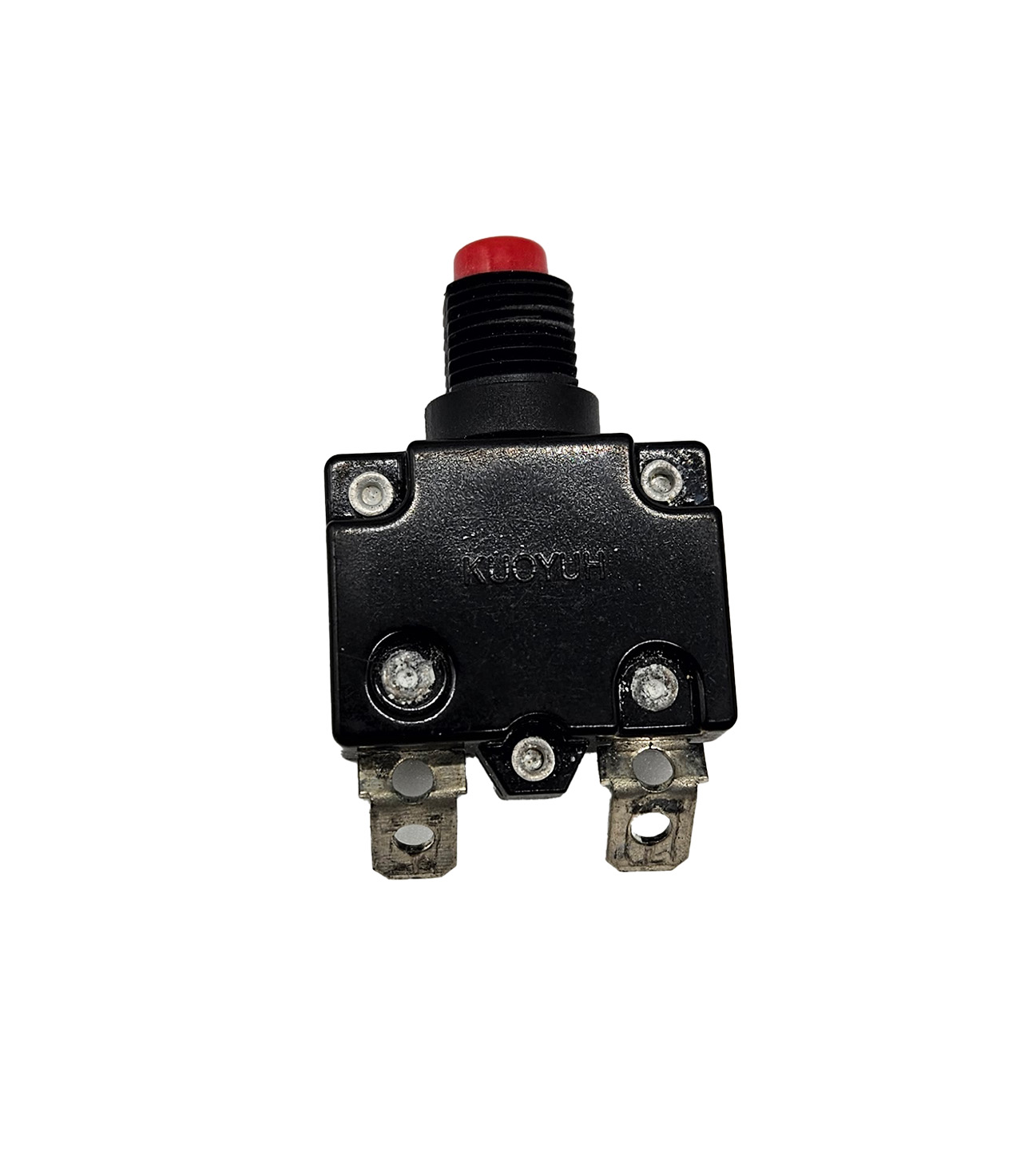

Automatic fuse, thermal 2.5A

Thermal fuses optimally protect your loads against overload in power distribution systems. Once the fuse has tripped, it can be switched on directly with the built-in switching function. Compared to melting fuses, you save time because no fuse replacement is needed.

This cover should be installed in a dry place, not necessarily inside the building, but it cannot be exposed to moisture in a well, for example.

The 88 Series Automatic Fuse is a unipolar, single-pressure thermal protection reset product used to protect motor equipment.

Simple design, precise in action. It is a reliable circuit protection device.

Suitable for power strip, uninterruptible power supply (UPS), extension cords, audio amplifier, mixer, meat grinder, marine panel, water pump, generator, motor protection, refrigeration equipment, etc.

Features
Complies with UL1077 Standard, EN60934 Standard, IEC60934 Standard. Complies with UL1500 ignition protection.
(Cadmium-free contacts) Comply with European environmental protection requirements.
Use Bakelite as main part. High temperature resistance. High safety.
Trip Free Cycling

Technical data
Current rating range: 3–30A
Input voltage labeled: 125/250VAC; 32/50VDC
Interrupting capacity: 125/250VAC x 1,000A (UL 1077)

Testing performed
Current test: 200% current full control test
Dielectric strength test: 1500VAC/min
Glow wire test: 850°

Safety certification
Electrical appliance certification: UL, CSA, CB, VDE, TUV, CCC, SAA, KC
Environmental standards: RoHS, REACH
