Art.nr: 1044436
Baga automatic pump BN 2
1.357 €

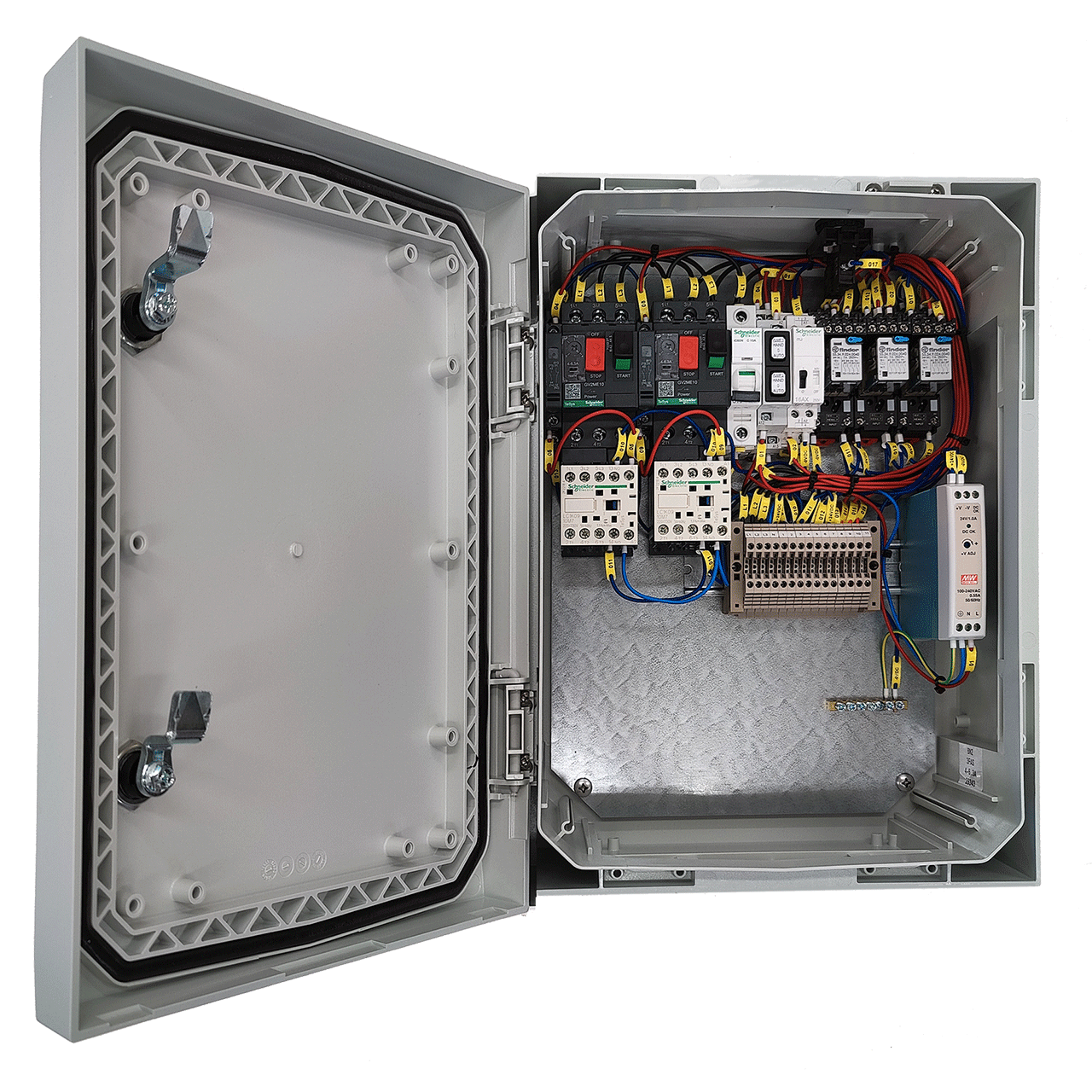

Pump automation for controlling two pumps with level switches. The control is done with level rockers.
Two or three rockers can be used depending on the application.
Level switches are ordered separately. BN 2 is available in several variants for different types and sizes of pump.
There are also a number of options such as soft start, flash light and modem to send SMS in case of alarm.
The product can be easily customized according to needs and wishes.
Product benefits
- Robust construction
- Outdoor enclosure IP66 is standard
- External alarm output for connection to higher-level system
Alarm light on the cabinet is standard
Technical data:
Dimensions: L=33 cm W=25 cm D=13 cm
Protection class: IP 55
Power Max: 690 v 50Hz
Operation: 230 VAC 6A 50 Hz
Level switches: 24 VAC
Alarm relay: Potential-free changeover contact max 6 A/250 VAC. Alarms for high level and tripped motor protection
Pump automation for controlling two pumps with level switches. The control is done with level rockers.
Two or three rockers can be used depending on the application.
Level switches are ordered separately. BN 2 is available in several variants for different types and sizes of pump.
There are also a number of options such as soft start, flash light and modem to send SMS in case of alarm.
The product can be easily customized according to needs and wishes.
Product benefits
- Robust construction
- Outdoor enclosure IP66 is standard
- External alarm output for connection to higher-level system
Alarm light on the cabinet is standard
Technical data:
Dimensions: L=33 cm W=25 cm D=13 cm
Protection class: IP 55
Power Max: 690 v 50Hz
Operation: 230 VAC 6A 50 Hz
Level switches: 24 VAC
Alarm relay: Potential-free changeover contact max 6 A/250 VAC. Alarms for high level and tripped motor protection
Article number:
1044436
Brand:
Kingspan Baga
