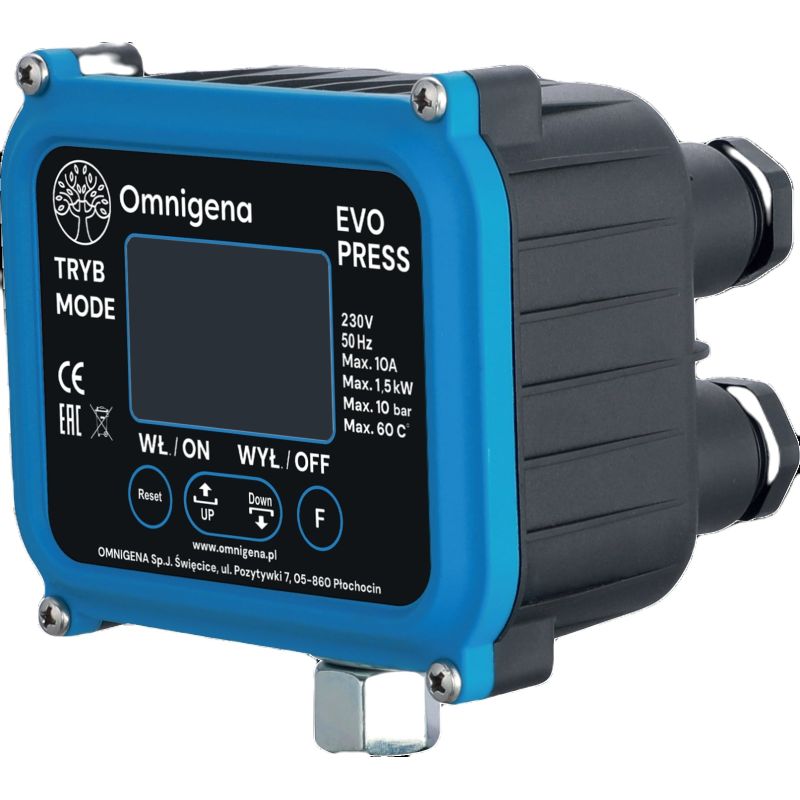

EVO PRESS control unit with 2 cables, equipped with plug and socket on the cable.

The EVO-PRESS smart switch is an electronic device designed to control the operation of the water pump instead of a traditional pressure switch.

The innovative EVO-PRESS protects the pump from dry running and allows you to set the minimum start pressure and maximum stop pressure, just like a normal pressure switch.

The intuitive color display is user-friendly and shows all necessary information about the current pressure, the pump’s operating status and any errors that may occur in the system

EVO PRESS is designed to work with a pressure tank

Features and functions

• Automatic start/stop of the pump
• Protection against dry running (pump shuts down in case of water shortage)
• Extra protection of electronics against moisture
• Ability to set both minimum start pressure and maximum stop pressure via an intuitive control panel
• Display showing operating status and power supply
• Equipped with two cables: one with a plug for connection to the mains and one with a socket for connecting the controller to the pump

Technical data:
Supply voltage 230V
Maximum current 10A
Maximum allowable pressure 15 bar
Setting range for connection pressure 1.5-9.5 bar
Maximum fluid temperature 60ºC
Maximum working environment temperature 35ºC
Diameter of connection pipe 1/4″ inch thread
Protection class IP65
