Art.nr: N/A
Polar tube double 25/40 with heating cable
fr. 60,26 €
Price per meter. Pick-up price in Västerås, ask us about shipping price if you want it delivered to the desired address.
We stock the most common dimensions and lengths in Västerås for fast delivery within a week, non-stocked items there is a delivery time of about 2-3 weeks.

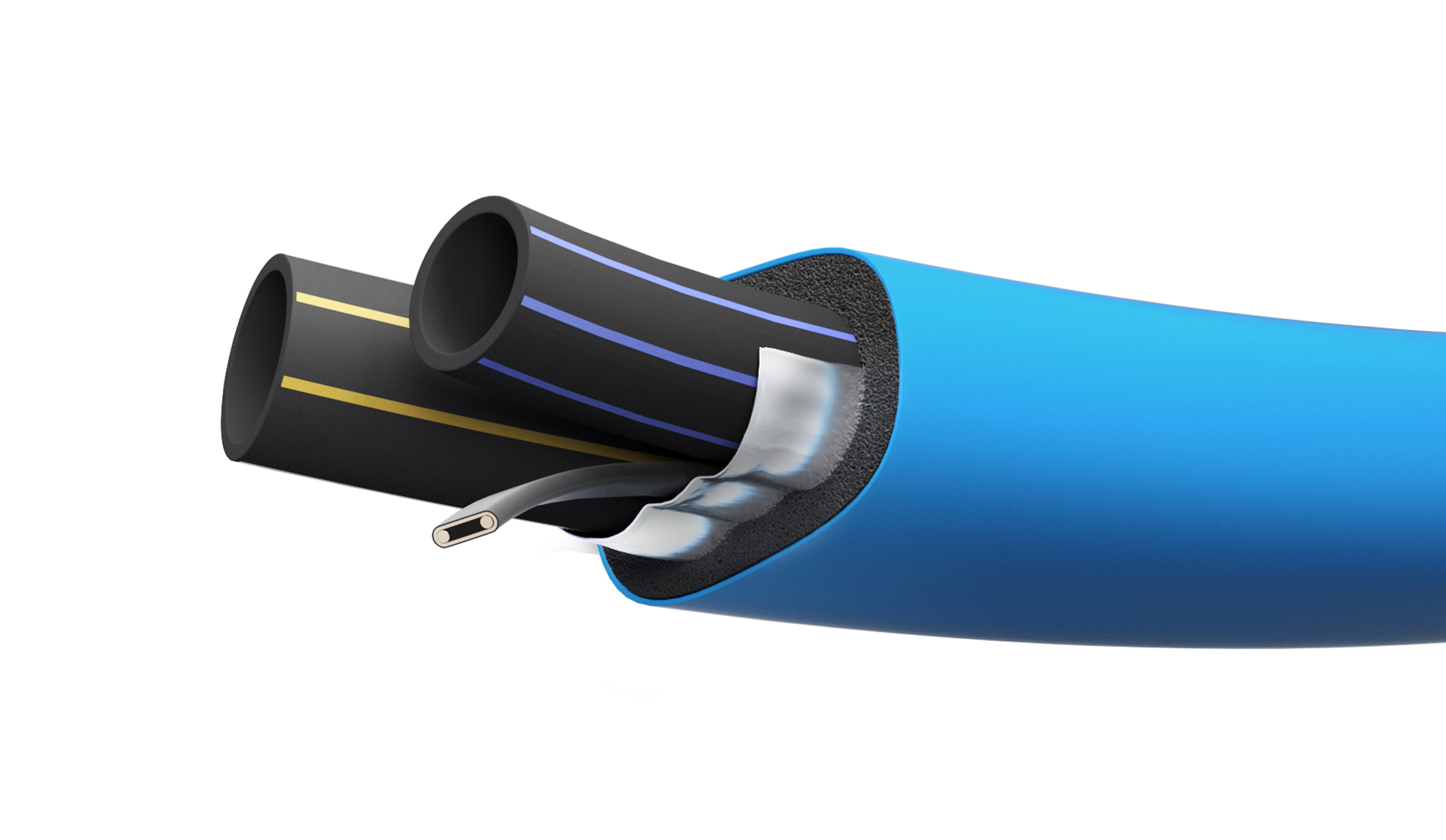

All in one package. The larger pipe is used to pump the wastewater from the pumping station to the main line. The smaller pipe is used to serve water to the household.

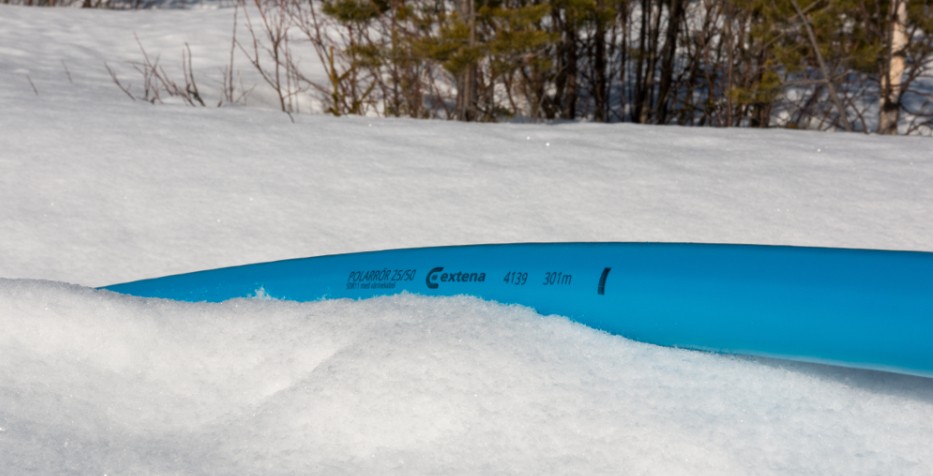

Polar pipe is a water pipe with a heating cable that prevents the water from freezing. It eliminates the requirement to get down to frost-free depths, you can lay the pipe directly on snow or ice if you wish.
These properties have proved valuable where there is a need to provide temporary water and sewerage quickly, for example to shanty towns and workplaces. Their use has also increased significantly in archipelago and mountain areas, where traditional water supply to houses often requires blasting to reach frost-free depths. With the Polar pipe, you get a reliable product that is easy and quick to install.
These features have proved valuable where there is a need to provide temporary water and sewerage quickly, for example to shanty towns and workplaces.
The beauty of using a self-regulating heating cable is that you can cut the pipe as needed. The self-regulating heating cable also automatically adjusts the output in relation to the outside temperature, which reduces energy consumption. We also recommend
thermostat control, which is available as an accessory just like the switch.
Material specification
Media tube: The media tube is made of PE (polyethylene) and is approved for food contact.
Insulation: The pipe is insulated with high quality closed cell flexible insulation. The base material of the insulation is PE and has the same environmental properties as the rest of the pipe. The lambda value of the insulation is W/mK = 0.043 and since the cells of the insulation are closed, the insulation maintains its insulation value without risk of water absorption.
Heating cable: Self-limiting heating cable from Raychem.
Nominal output (W/m at 10 °C) 15 W/m.
Fuse requirements at -20° C
6A 40 m
10A 60 m
16A 100 m
20A 130 m
Outer jacket: The outer jacket is also produced in PE (polyethylene), but with a lower density, which makes the jacket more flexible.
Note: a connection and termination kit (the same for all dimensions) is needed for each length of hose used.
Product details
Article number:
Length:
Price per meter | 5 meters | 10 meters | 15 meters | 20 meters | 25 meters | 30 meters | 35 meters | 40 meters | 45 meters | 50 meters | 55 meters | 60 meters | 65 meters | 70 meters | 75 meters | 80 meters | 85 meters | 90 meters | 95 meters | 100 meters
Price per meter. Pick-up price in Västerås, ask us about shipping price if you want it delivered to the desired address.
We stock the most common dimensions and lengths in Västerås for fast delivery within a week, non-stocked items there is a delivery time of about 2-3 weeks.
All in one package. The larger pipe is used to pump the wastewater from the pumping station to the main line. The smaller pipe is used to serve water to the household.
Polar pipe is a water pipe with a heating cable that prevents the water from freezing. It eliminates the requirement to get down to frost-free depths, you can lay the pipe directly on snow or ice if you wish.
These properties have proved valuable where there is a need to provide temporary water and sewerage quickly, for example to shanty towns and workplaces. Their use has also increased significantly in archipelago and mountain areas, where traditional water supply to houses often requires blasting to reach frost-free depths. With the Polar pipe, you get a reliable product that is easy and quick to install.
These features have proved valuable where there is a need to provide temporary water and sewerage quickly, for example to shanty towns and workplaces.
The beauty of using a self-regulating heating cable is that you can cut the pipe as needed. The self-regulating heating cable also automatically adjusts the output in relation to the outside temperature, which reduces energy consumption. We also recommend
thermostat control, which is available as an accessory just like the switch.
Material specification
Media tube: The media tube is made of PE (polyethylene) and is approved for food contact.
Insulation: The pipe is insulated with high quality closed cell flexible insulation. The base material of the insulation is PE and has the same environmental properties as the rest of the pipe. The lambda value of the insulation is W/mK = 0.043 and since the cells of the insulation are closed, the insulation maintains its insulation value without risk of water absorption.
Heating cable: Self-limiting heating cable from Raychem.
Nominal output (W/m at 10 °C) 15 W/m.
Fuse requirements at -20° C
6A 40 m
10A 60 m
16A 100 m
20A 130 m
Outer jacket: The outer jacket is also produced in PE (polyethylene), but with a lower density, which makes the jacket more flexible.
Note: a connection and termination kit (the same for all dimensions) is needed for each length of hose used.
