Pressure switches, pressure gauges and sockets for 230V

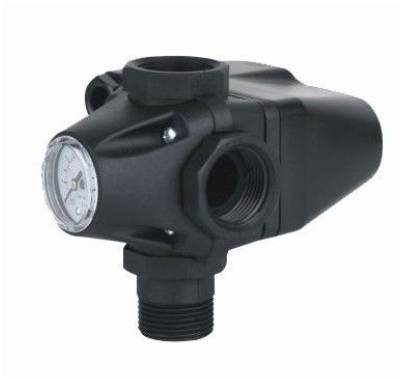

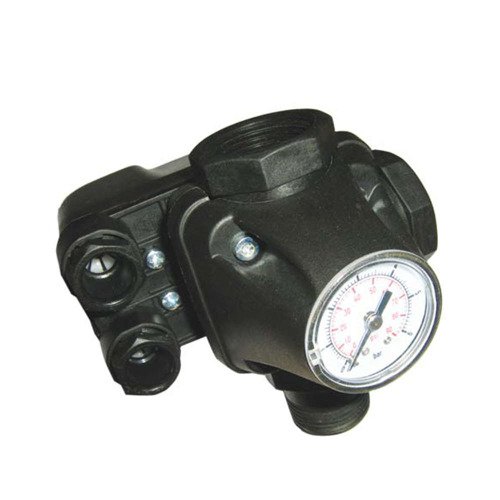

The integrated pressure switch combines three parts of the hydrophore system: pressure switch, pressure gauge and outlet.

It consists of:
A pressure switch, a manometer, an additional outlet, i.e. an outlet that allows the installation of additional instruments.

Thanks to the convenient combination of them into one, the accessories are very easy to install on the pump – there is no need to screw the individual elements together.

Connections are R25 i.e. 1″ male and female threaded connections.

The automatic pressure switch operates in pressure conditions from 1.7 to 2.5 bar, i.e. it starts the pump when we set any pressure parameter within this available range.

The maximum shut-off pressure of the pump is 3.5 bar.

The adjustment is made with adjusting screws.

The pressure flow meter can handle a range of 0-10 bar.

Technical data:
Supply voltage 230V
Rated current 8A
Rated frequency 50/60 Hz.
Switch-on pressure adjustment range 1.2 – 2.6 bar
Switch-off pressure adjustment range 2.1 – 5 bar
