PRESSURE TRANSMITTER ANSL R15 INV/R15 INV

Pressure intermediaries are used when you do not want the liquid to come into contact with the pressure switches, for example. If you are pumping salt water.
The pressure switch transfers the pressure to the pressure switch/manometer, for example. Pressure switch/manometer without the liquid being in contact with the pressure switch/manometer.

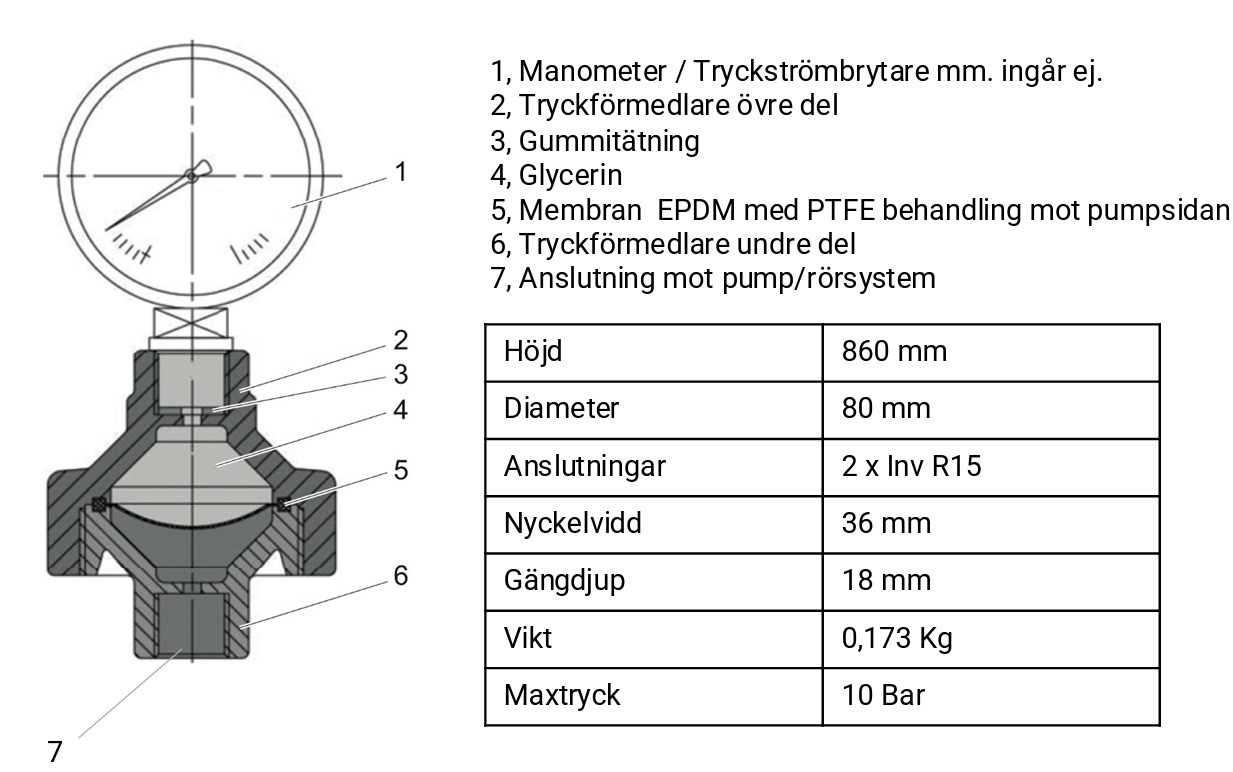

Diaphragm EPDM/PTFE Filled with glycerine on the pressure gauge side,

This is recommended for water containing more than 2000 PPM, i.e. brackish water.

The pressure switch is placed between the pump and the pressure switch, Glycol is filled both in the pressure switch and in the pressure switch before it is screwed to the pump/pipe.

NOTE: All air must be removed between the pressure switch and the pressure switch before mounting the pressure switch on the pump.

Max Working Pressure 10 Bar

Connection in R15 on both sides.

Measurements:

Height 86 mm (built-in dimensions)

Diameter 79 mm

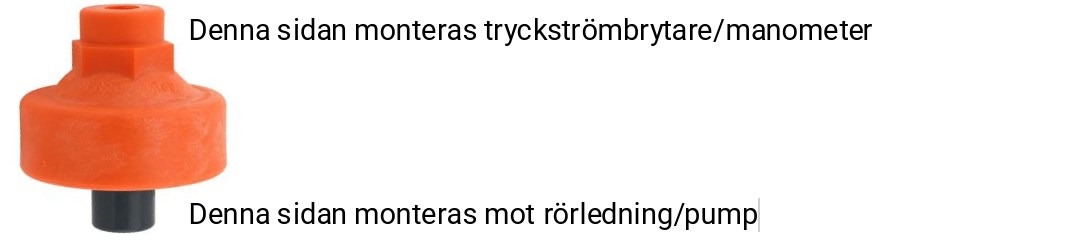

Fill with glycol in the pressure switch and pressure switch / manometer, then screw the pressure switch / manometer there. The pressure switch / manometer is screwed there and then the unit is mounted on the pump.

Fill the pressure switch and the pressure switch/manometer, then assemble them. Then mount the screwed together parts on the pump/pipeline.
