Art.nr: 114836

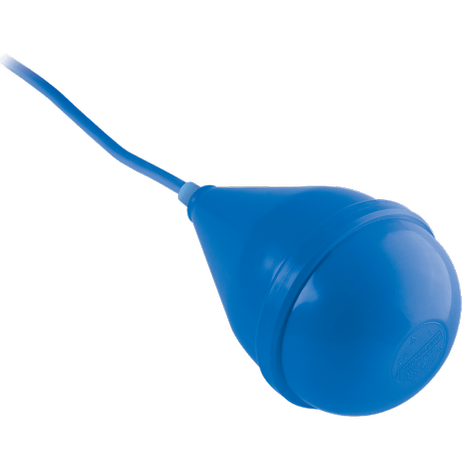

PUMPTEK Double acting level rocker 20° drinking water
Drinking water approved, 20° angle 250V 8A inductive load IP68 10mt cable ACS 3X1 Ø8,8mm.
79,12 €
Fast facts:
-For liquid level control and monitoring
-Requires no regular maintenance
-mercury-free and environmentally friendly
Dimensions:
Height 182mm
Diameter Ø109 mm
Weight 0,5kg
Cable length 10 m
The level rocker is used for controlling and monitoring liquid levels and is suitable for use in clean water.
When the liquid level reaches the rocker, it tips and activates the built-in microswitch.
Depending on the application, you can, for example, control a pump, trigger an alarm, etc.
The cable has a rubber sheath that does not accumulate dirt or deposits.
Patented feature that means the rocker stays in the same place when it is
activated. This means that several level rockers can be installed next to each other without the risk of cables getting tangled.
PUMPTEK Level Switches therefore work very reliably with minimal need for regular
maintenance.
Product details
Article number:
114836
Fast facts:
-For liquid level control and monitoring
-Requires no regular maintenance
-mercury-free and environmentally friendly
Dimensions:
Height 182mm
Diameter Ø109 mm
Weight 0,5kg
Cable length 10 m
The level rocker is used for controlling and monitoring liquid levels and is suitable for use in clean water.
When the liquid level reaches the rocker, it tips and activates the built-in microswitch.
Depending on the application, you can, for example, control a pump, trigger an alarm, etc.
The cable has a rubber sheath that does not accumulate dirt or deposits.
Patented feature that means the rocker stays in the same place when it is
activated. This means that several level rockers can be installed next to each other without the risk of cables getting tangled.
PUMPTEK Level Switches therefore work very reliably with minimal need for regular
maintenance.
