Art.nr: 5531949

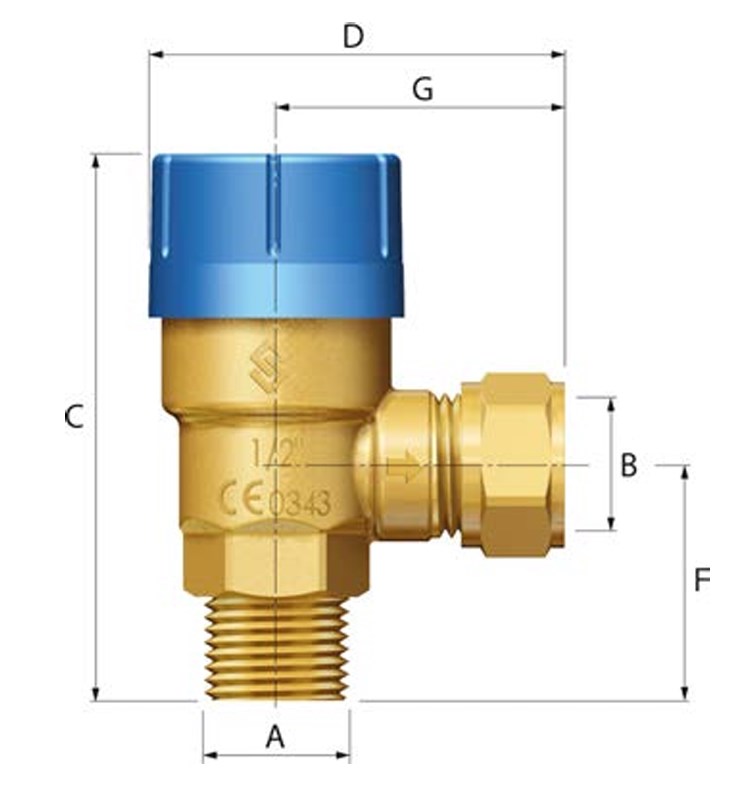

Safety valve tap water 9.0 bar
33,95 €
For use in domestic hot water systems. Can be used in combination with all water heaters with water tank.
Manufactured according to EN 1489. Internal thread x clamping ring (R15xCU15).
Material: dezincification-resistant brass (CW602N).
Working temperature: min -10 °C up to max +95 °C.
Medium: tap water.
Capacity: 75kW.
Type approval, Sitac No 3053/9.

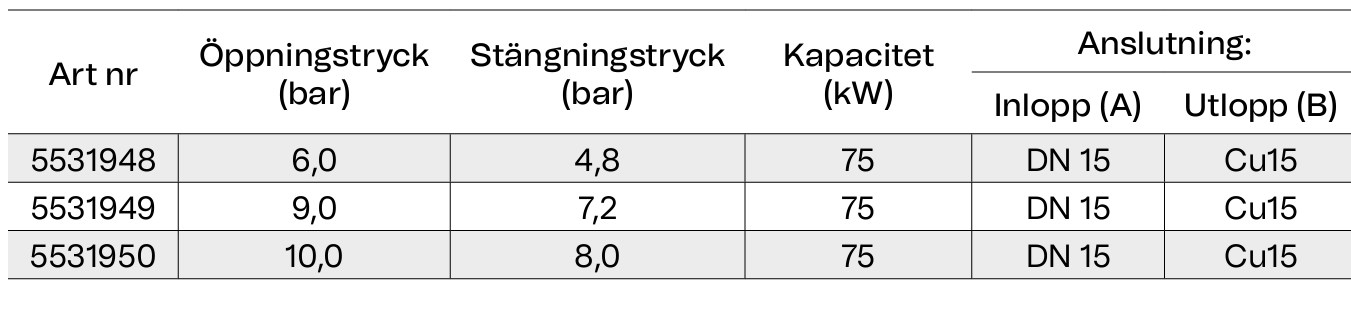

| Opening pressure: | 9.0 bar |
| Closing pressure: | 7.2 bar |
| Pressure: | 9 bar |
| Inlet connection: | DN15 |
| Connection outlet: | CU15 |
| Min temperature: | -10 °C |
| Maximum temperature: | 95 °C |
| Thread: | External thread x Clamp |
Product details
Article number:
5531949
No files available.
For use in domestic hot water systems. Can be used in combination with all water heaters with water tank.
Manufactured according to EN 1489. Internal thread x clamping ring (R15xCU15).
Material: dezincification-resistant brass (CW602N).
Working temperature: min -10 °C up to max +95 °C.
Medium: tap water.
Capacity: 75kW.
Type approval, Sitac No 3053/9.
| Opening pressure: | 9.0 bar |
| Closing pressure: | 7.2 bar |
| Pressure: | 9 bar |
| Inlet connection: | DN15 |
| Connection outlet: | CU15 |
| Min temperature: | -10 °C |
| Maximum temperature: | 95 °C |
| Thread: | External thread x Clamp |
