SANICOM 2

Sanicom 2 is a heavy-duty pumping station for the intensive pumping of bdt water in commercial spaces.

• High capacity
• Withstands intensive use
• Withstands water temperatures up to 90°C
• Tank volume 34.5L
• Ideal for heavy commercial applications
• Safe, reliable pump with spare motor
• Easy and quick installation

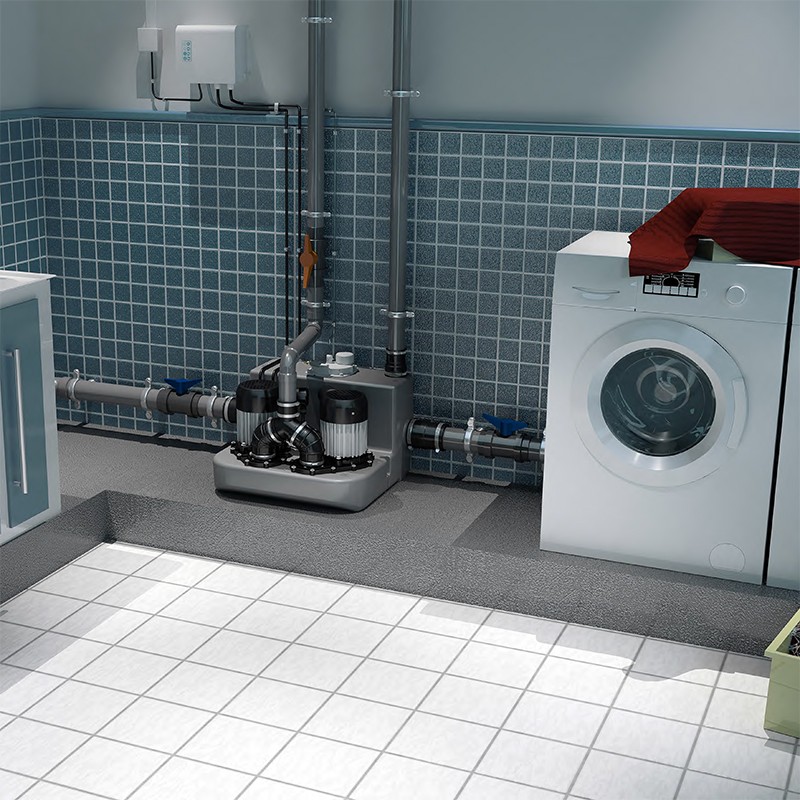

Sanicom 2 is a two-motor pumping station designed for gray water mainly in commercial spaces such as bars, restaurants, kitchens, commercial kitchens, laundries and laundry facilities. It has two inlets and can pump the wastewater away in 50 mm pipes. The working temperature is 35ºC, but for short periods Sanicom 2 can handle water temperatures up to 90ºC.

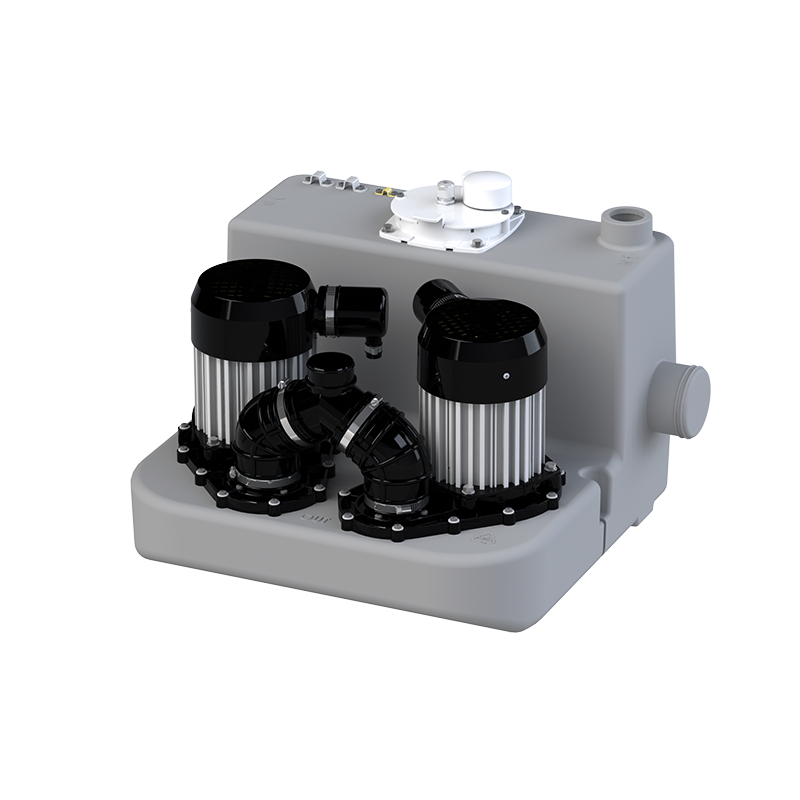

Equipped with two powerful motors of 1500 W each with hefty cooling fins, the Sanicom 2 can really take a beating. The second motor starts automatically to help the first if too much water enters the pump, ensuring continuous operation in all circumstances.

It is possible to connect an external alarm. The pump must not be built in.

Technical data sheet for SANICOM® 2
Weight
23,6 kg
Inlet diameter
– Diameter of upper inlets: Ø utv. 50 and Ø utv. 40 – Diameter of lower inlets: outlet dia. 75, outlet dia. 50 and outlet dia. 40
Effect
2 x 1500 W
Rated voltage
220-240V/50Hz
Electrical classification
1
Protection class
IP44
Take-off height
145 mm
Rated current max
13 A
Maximum temperature of incoming wastewater
35°C (90°C per interval for max. 5 min.)
Outlet diameter
DN50 (Øutv 50 mm)
Weight (including accessories and carton)
26 kg
Max. recommended height
10 m
Tank volume
34.5 L
Ventilation diameter
50 mm
Possible connections
Grey water bathroom (without toilet), kitchen, laundry

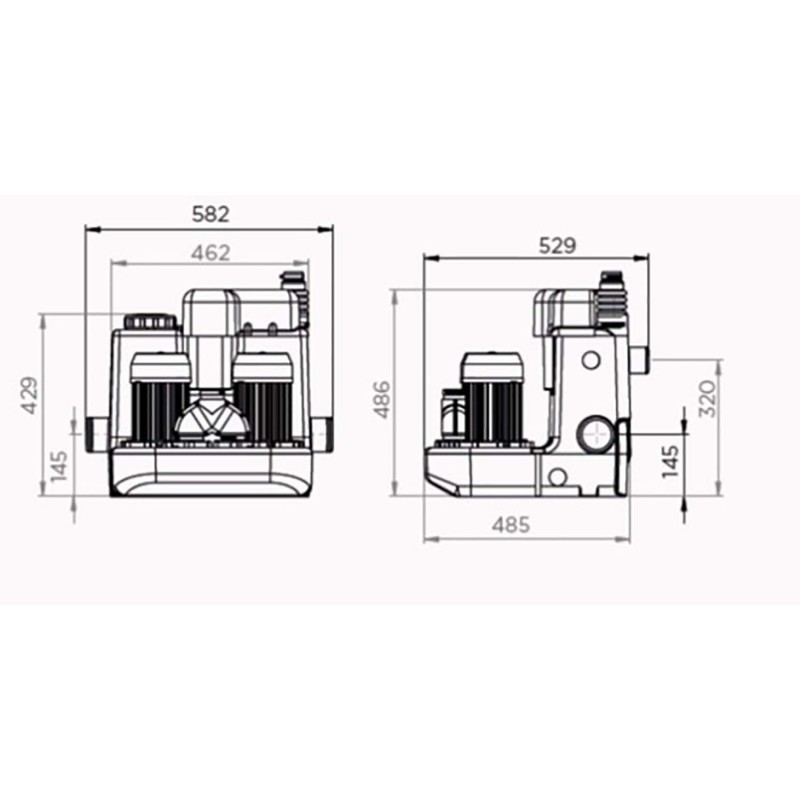

Dims 467 x 480 x 480
