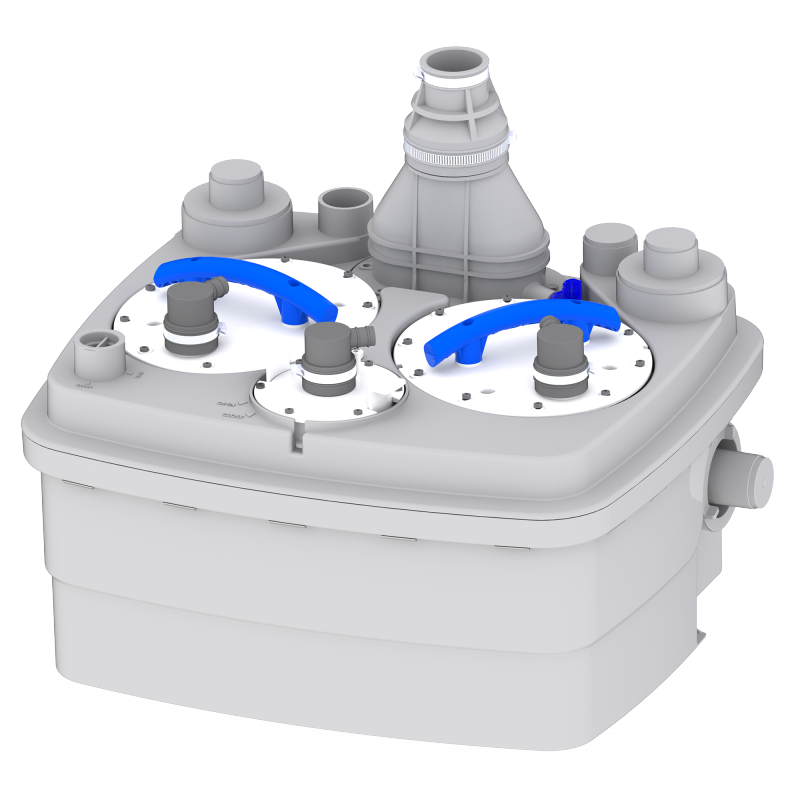

SANICUBIC 2 Classic

A powerful pumping station for both private use and public environments to tackle gray and black water.

RSK 5886401

• Handles wastewater from toilet seats, bidets, sinks, washbasins, showers, bathtubs, sinks, washing machines and dishwashers
• Discreet installation thanks to lower dimension pipes
• Multiple inlets available for greater installation flexibility
• Functional safety thanks to the audible and visual alarm
• Protection class IP68

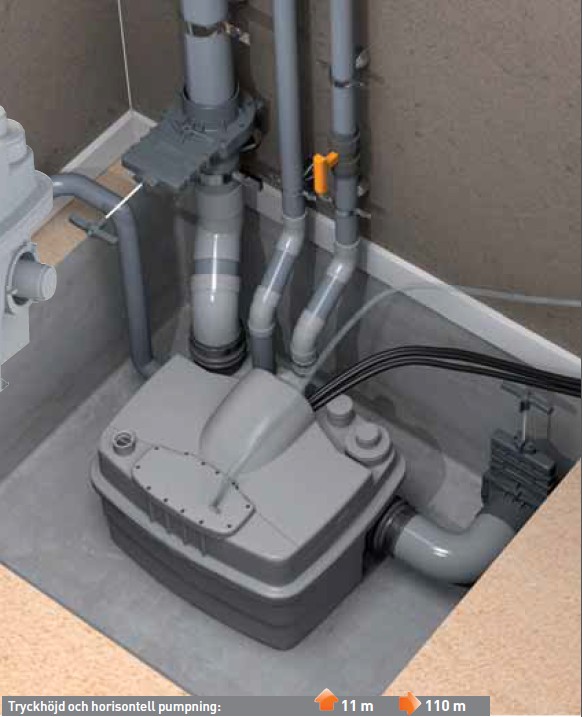

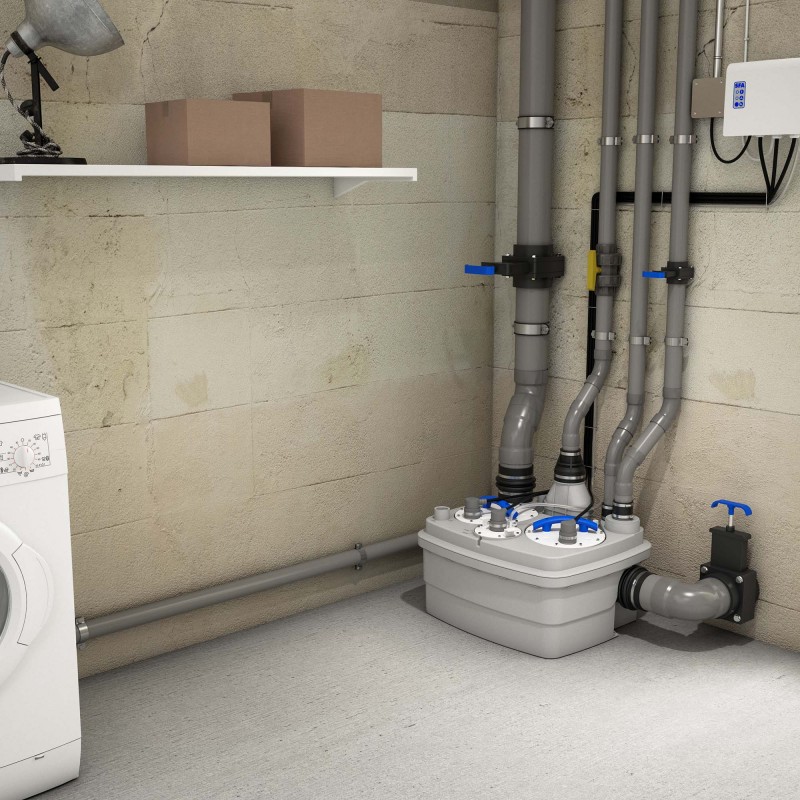

Sanicubic 2 Classic is a powerful pumping station that grinds and pumps away wastewater from an entire household or smaller commercial buildings, shops, etc.
The pump has a full 5 inlets and can take care of household or shop wastewater from toilet seats, washbasins, showers, bathtubs, washing and dishwashers.
Discover the SANICUBIC range of pumping stations for all your projects.

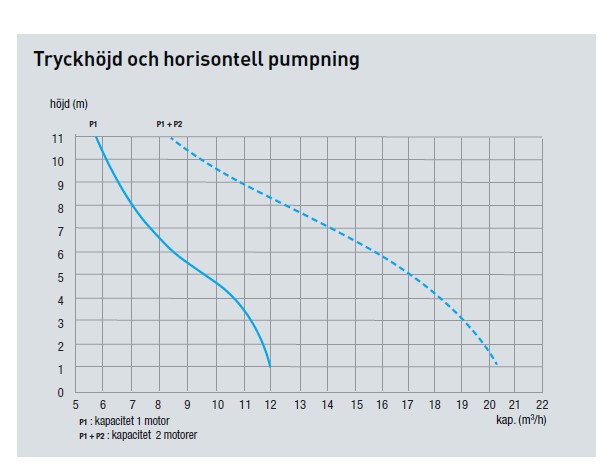

SANICUBIC 2 Classic has 2 efficient motors of 1500 W each, which run alternately and ensure safe operation in all circumstances. Each motor is equipped with an efficient cutting system that reduces the risk of clogging.

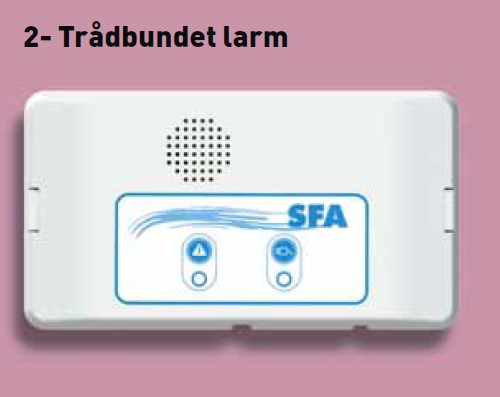

The sewage pump is IP68 rated and equipped with a wired alarm for safe monitoring.

Technical data sheet for SANICUBIC 2 Classic
Weight
32.9 kg

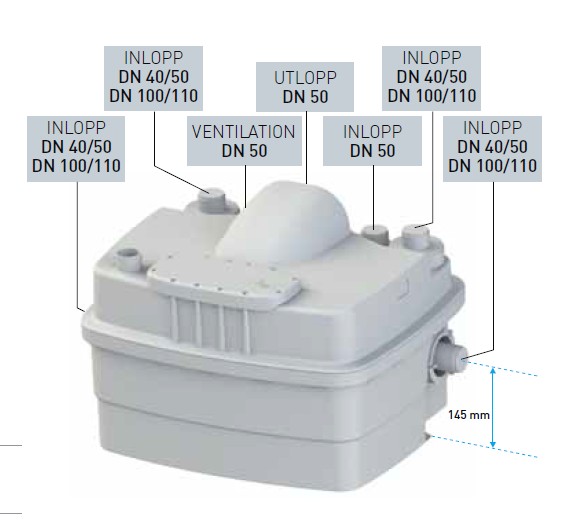

Number of inlets
5
Inlet diameter
– 1 inlet DN 40/50 (Ø out 40/50 mm) – 4 inlets DN 40/50/100/110 (Ø out 40/50/100/110 mm)
Effect
2 x 1500 W
Rated voltage
220-240V/50Hz
Electrical classification
1
Protection class
IP68
Maximum temperature of incoming wastewater
40°C (70°C per interval for max. 5 min.)
Outlet diameter
DN40 (Ø out of 50 mm)
Protection class control box
IPX4
Weight (including accessories and carton)
35 kg
Height max. recommended
11 m
Tank volume
45 L
Ventilation diameter
50 mm

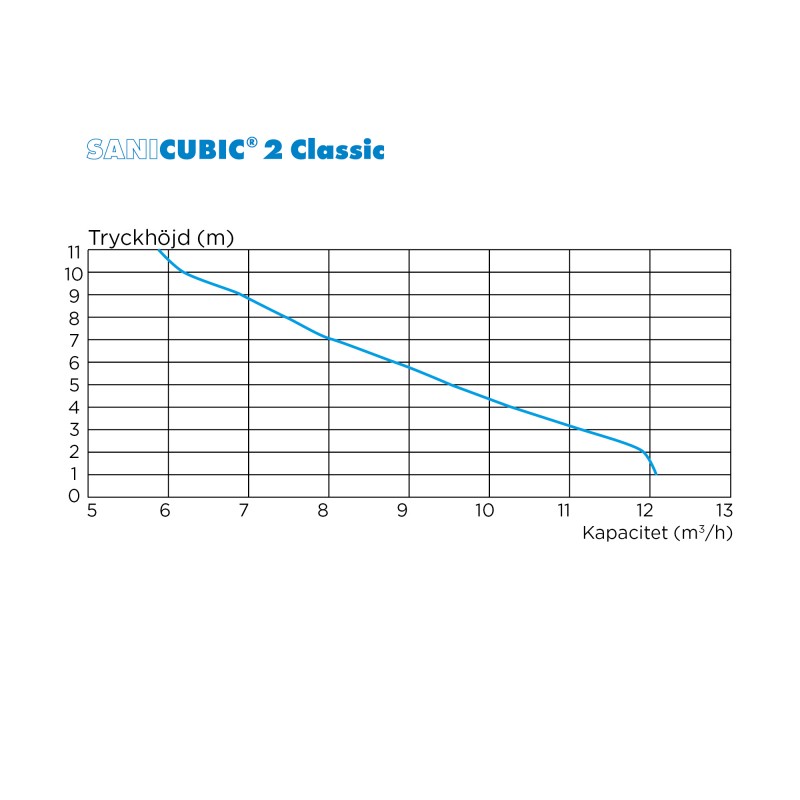

Maximum height (Q = 0 L/min)
13 m
Level ON/OFF
140/60 mm
Alarm level
210 mm
Possible connections
Waste water from several toilets, gray water from bathroom, kitchen, laundry

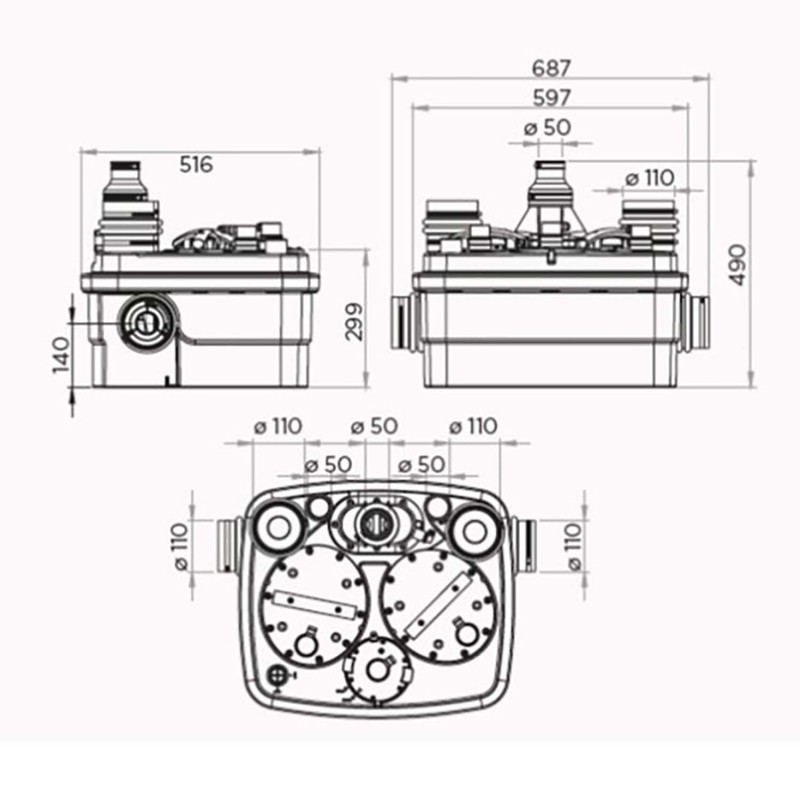

Dimensions: 687 x 516 x 490
