Art.nr: xylq-8968

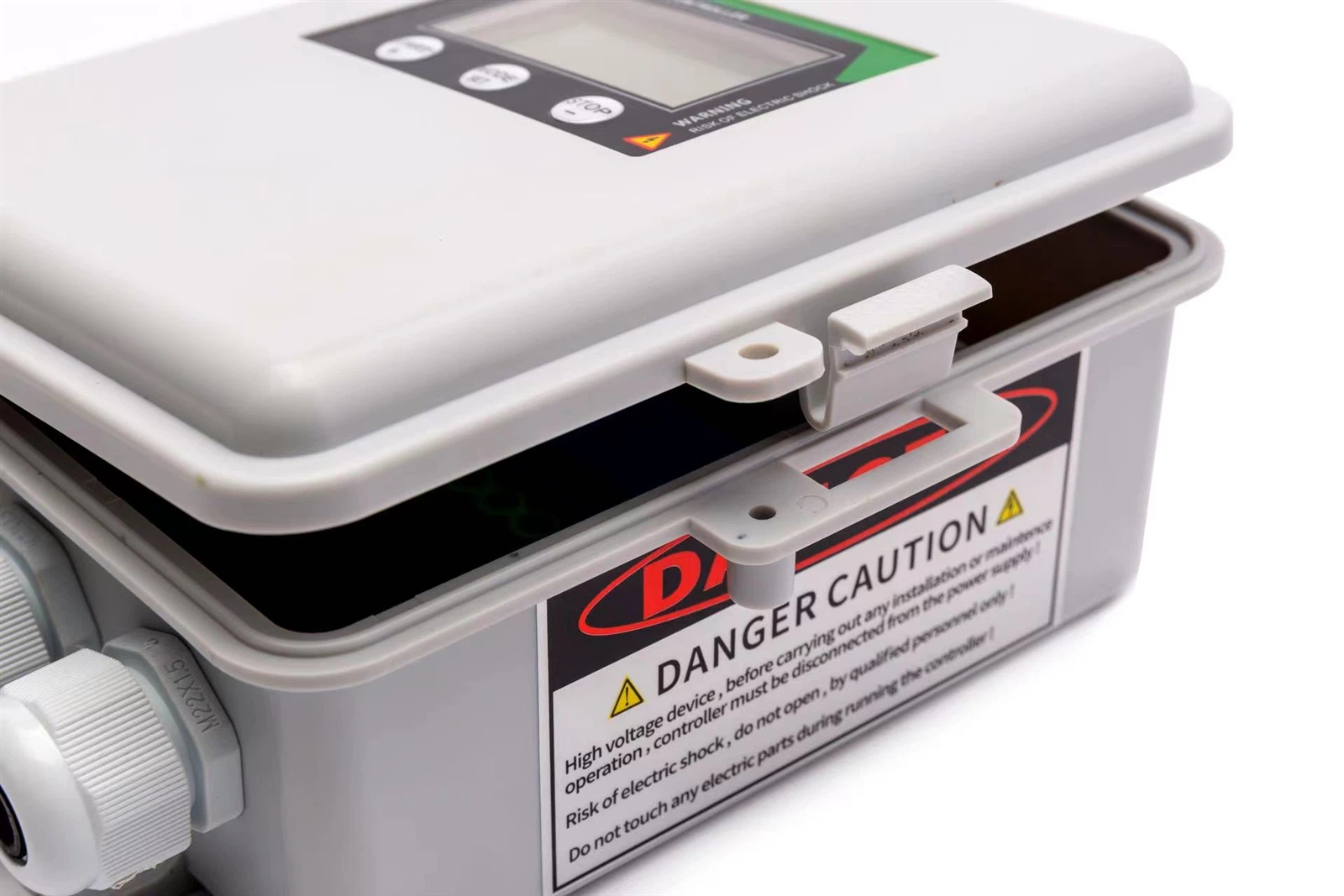

Smart Pump Mini1 Plus Automatic cabinet, 230V, 0.37-2.2KW
1-phase motor protection. It is an easy-to-use, programmable protection device for direct start, single phase deep well pumps, centrifugal pumps, pipeline pump motors, etc.
Main features

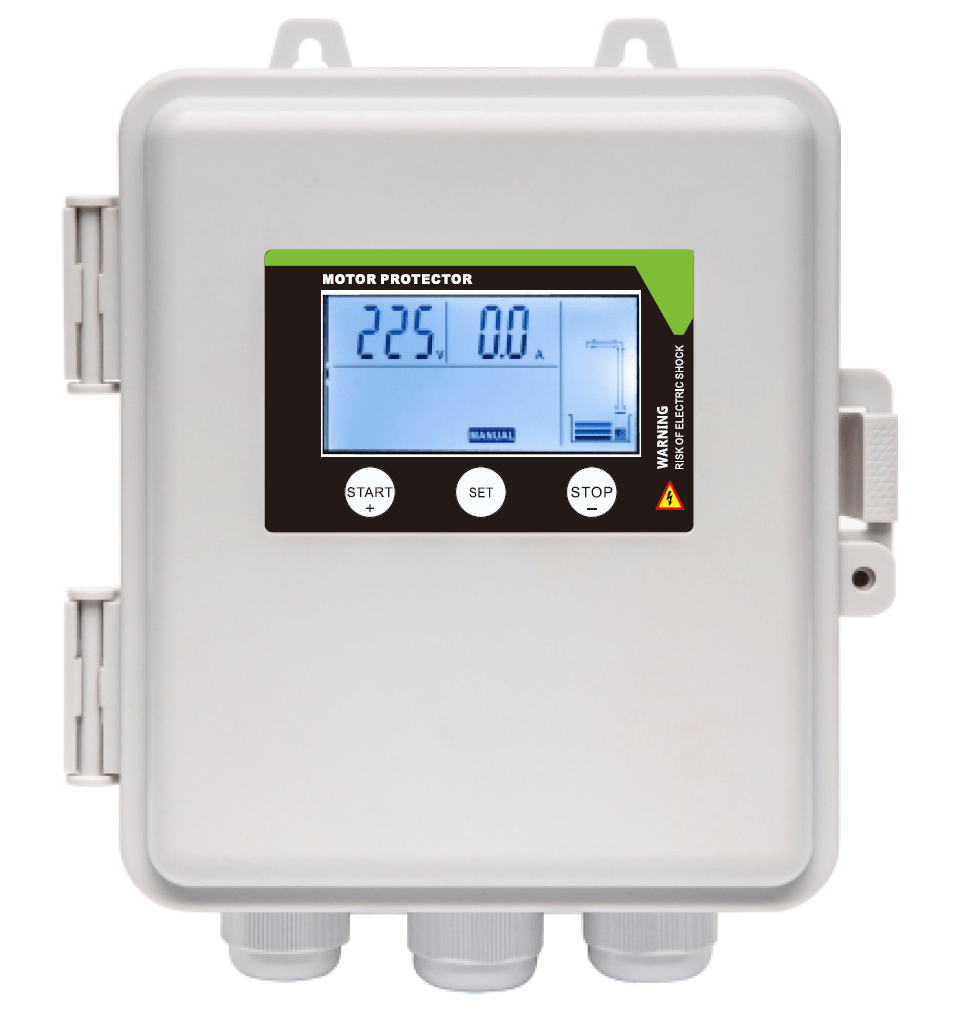

Dynamic LCD display of pump operating status
■ Push-button calibration

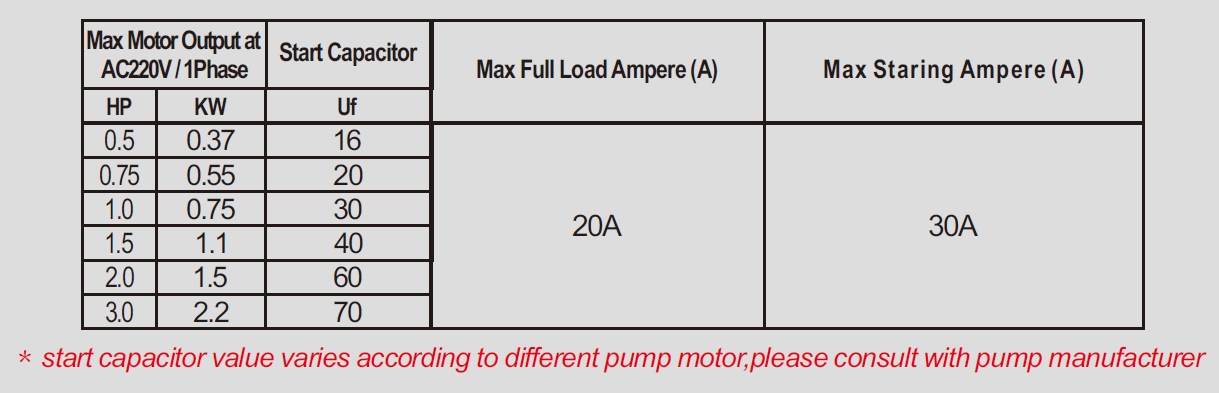

Space reserved for installation of internal starting capacitor in the pump motor
IP65 protection class
Protects the pump against many failures
Memory function during shutdown and power restoration.
Visual and audible alarm for error message
| Main technical characteristics of controller | ||
| Main technical data | ||
| Rated output power | Refer to label on controller | |
| Rated input voltage | Refer to label on controller | |
| Protection function | Dry run | Pump stall |
| Overload | ||
| Under/Over voltage | ||
| Main installation data | ||
| Working temperature | -25°C – +55°C | |
| Working humidity | 20% – 90% Relative Humidity | |
| Degree of protection | IP65 | |
| Installation position | Vertical | |
| Unit dimensions (L x W x H) | 175*88*210 mm | |
| Unit weight (net) | 0.8 kg | |
| Para-meter | Description | Range | Default value |
| 001 | Dry run protection trip amps. | 0.7 times of rated running ampre | |
| 002 | Overload protection trip amps. | 1.4 times of rated running ampere | |
| 003 | Stall protection trip amps. | 1.7 times of rated running | |
| 004 | Under voltage protection trip voltage. | 175 V (Single Phase) | |
| 005 | Over voltage protection trip voltage. | 253 V (Single Phase) | |
| 006 | Dry run protection trip response time. | 0 – 254 sec | 6 seconds |
| 007 | Dry run protection recovery time. | 0 – 254 min | 30 minutes |
| 008 | Pump running time. | 0 – 254 min | 0 minutes (0 = inactive) |
| 009 | Memory Function when Power Off&Power Recovery | 0-1 | 1(this function is available) |
109,94 €
1-phase motor protection. It is an easy-to-use, programmable protection device for direct start, single phase deep well pumps, centrifugal pumps, pipeline pump motors, etc.
Dynamic display of the pump operating status in the panel.
Visual and audible alarm for error message
Smart Pump PCS has three general operating modes
- Tank to tank
- Pump with pressure sensor (drinking water pump, irrigation etc.)
- Pump in well and pumping station (sewerage and drainage)
Product benefits
-
Simple push-button calibration
-
Display of the last five pump faults
-
Display of the accumulated pump running time
-
Dynamic LCD display shows pump operating information
-
Memory function in case of power failure and power restoration
-
A user-friendly human-machine interface is provided via the LCD module
-

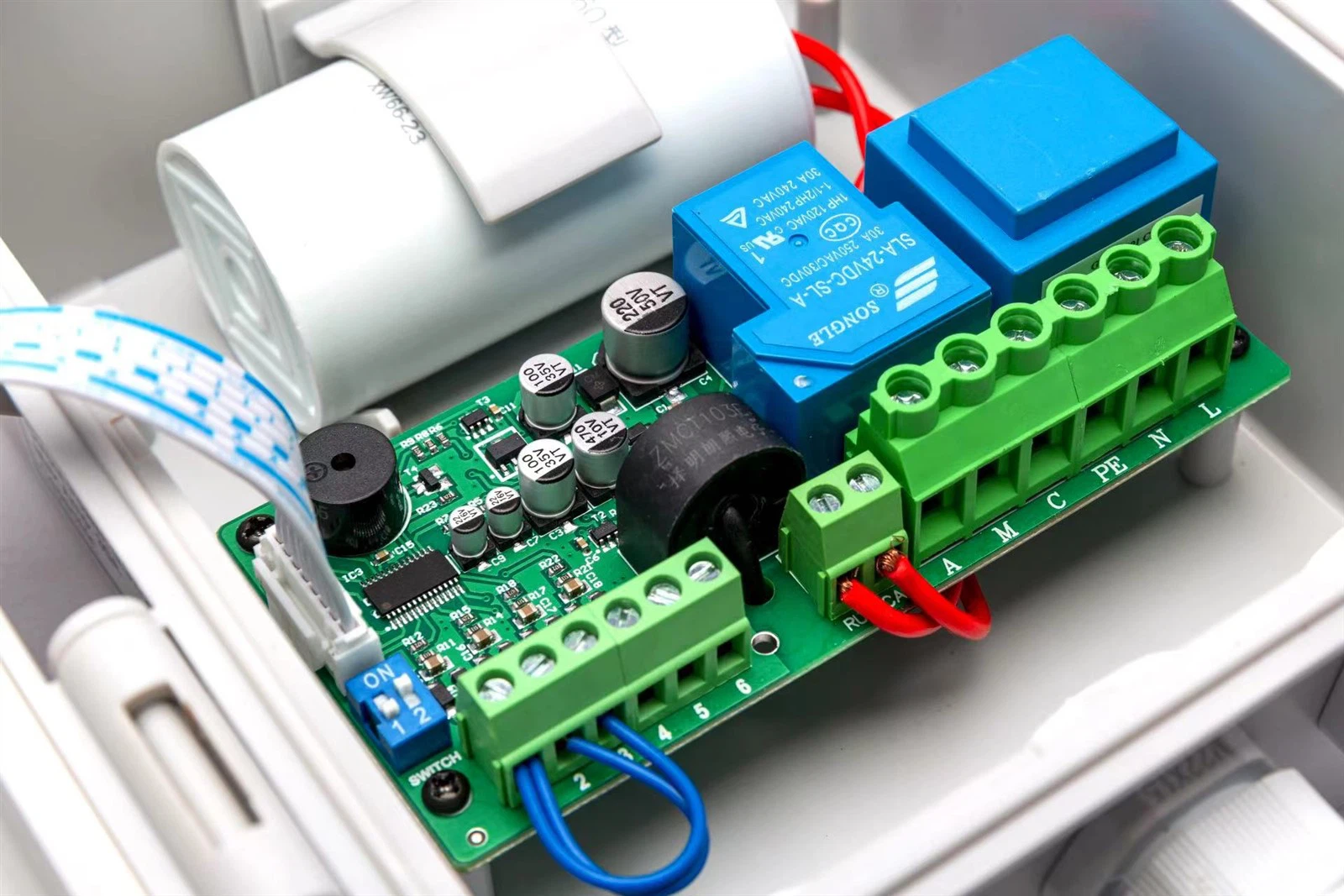

Prepared place for installation of starting capacitor
Protective functions
Dry running protection with free sensor
Pump stop protection
Overload protection
Undervoltage protection
Overvoltage protection
Sensors that can be connected
-
Level rocker (ON/OFF signal)
-
Pressure switch (ON/OFF signal)
-
Liquid sample
Applications

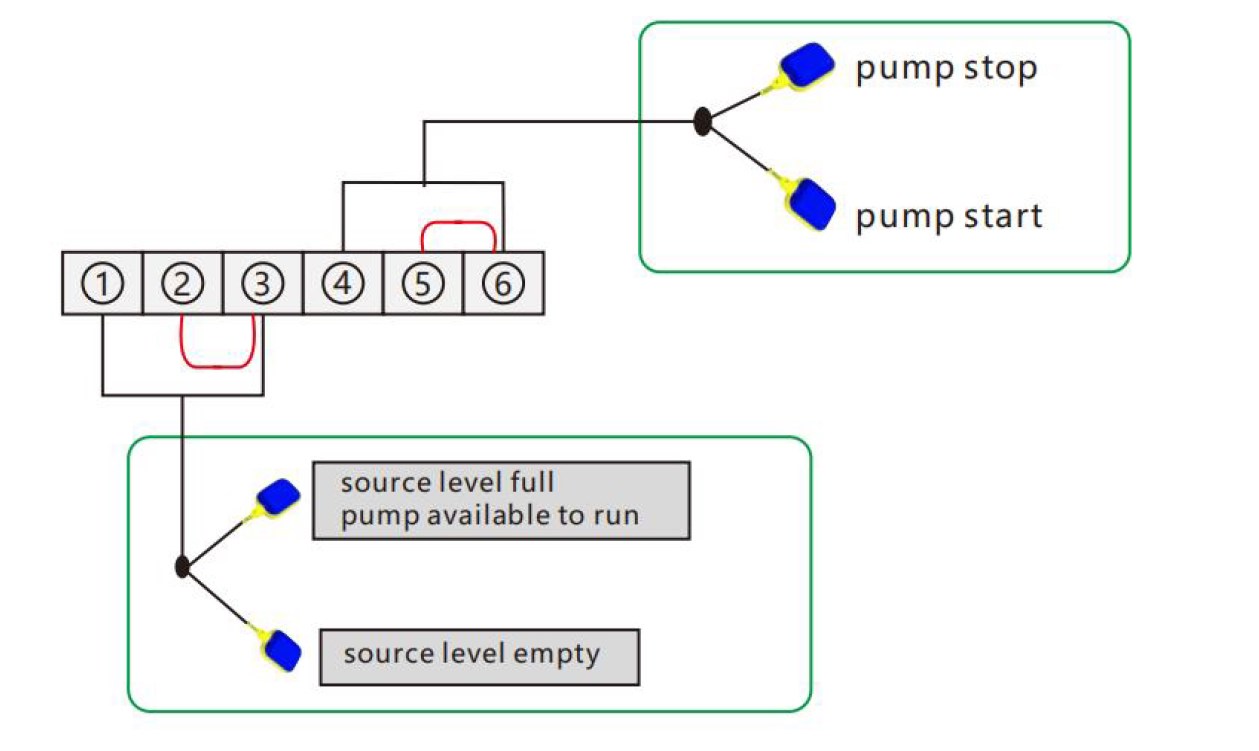

- Used for water transfer from the low tank to the upper tank with liquid probe or level rocker

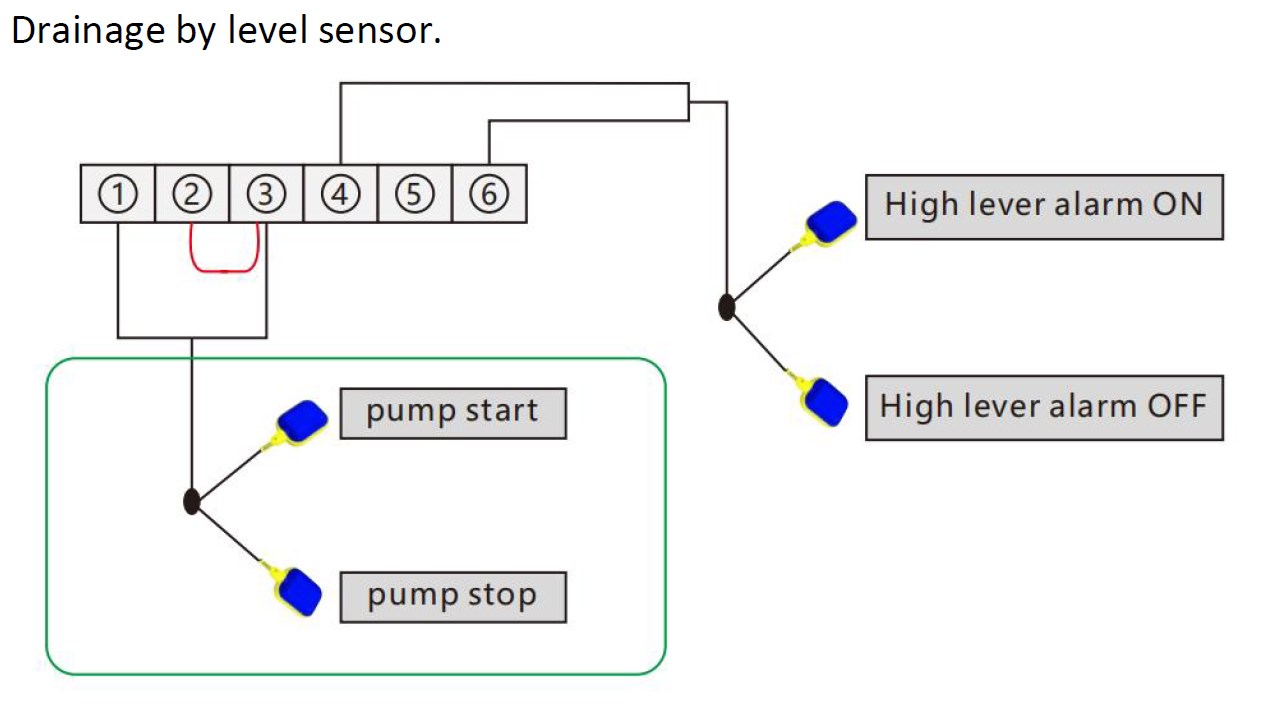

- Used for pump well with level rocker

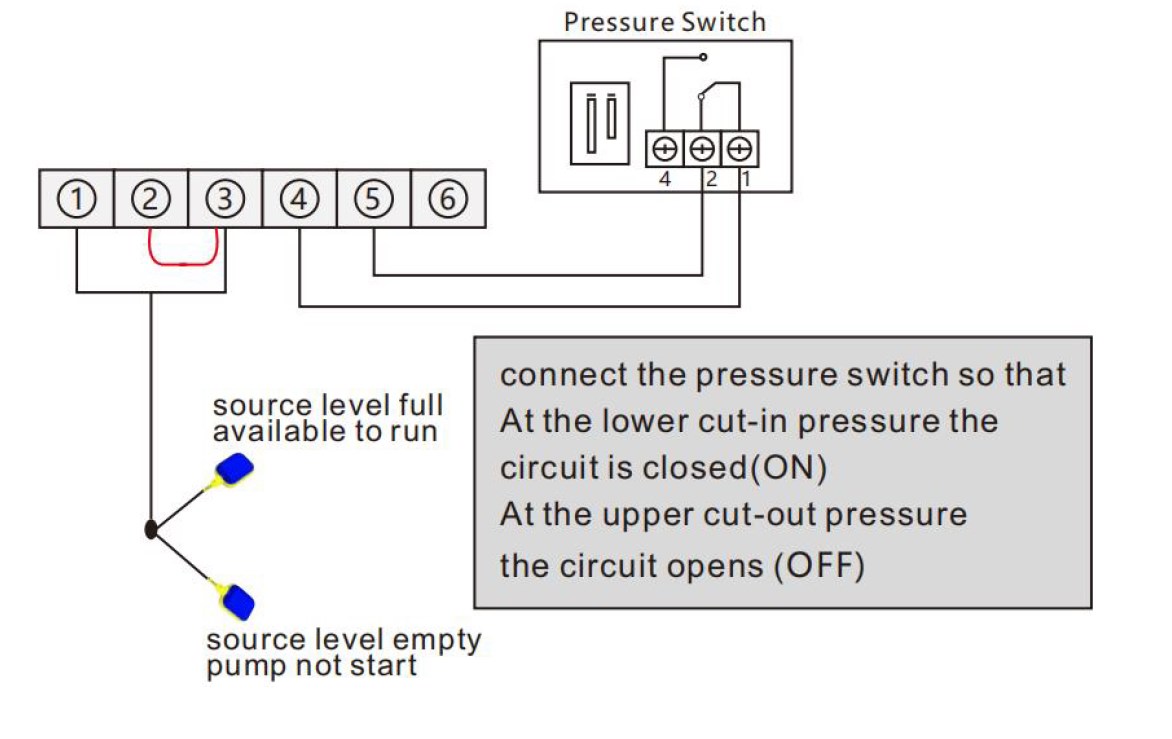

- Used for deep well pump with a pressure switch
Main installation data
Working temperature: -25℃ — 55℃
Working humidity: 20%-90%RH, no condensation
Protection class: IP67
Mounting type: Wall mounting

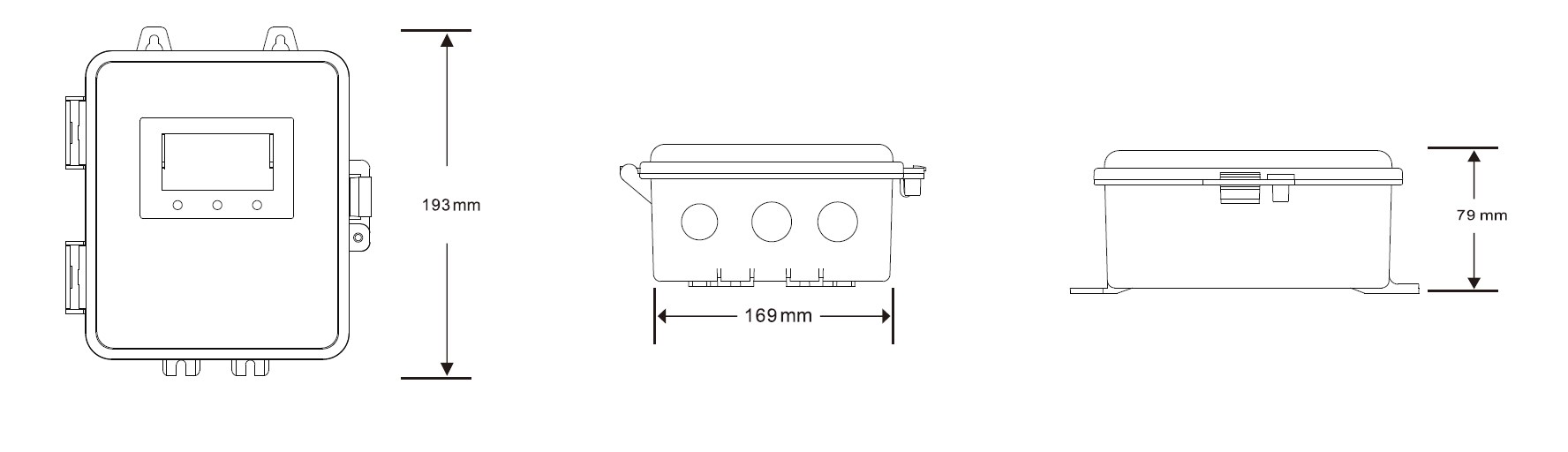

Unit dimensions (L * W * H) 193*169*79 mm
Product details
Article number:
xylq-8968
1-phase motor protection. It is an easy-to-use, programmable protection device for direct start, single phase deep well pumps, centrifugal pumps, pipeline pump motors, etc.
Dynamic display of the pump operating status in the panel.
Visual and audible alarm for error message
Smart Pump PCS has three general operating modes
- Tank to tank
- Pump with pressure sensor (drinking water pump, irrigation etc.)
- Pump in well and pumping station (sewerage and drainage)
Product benefits
-
Simple push-button calibration
-
Display of the last five pump faults
-
Display of the accumulated pump running time
-
Dynamic LCD display shows pump operating information
-
Memory function in case of power failure and power restoration
-
A user-friendly human-machine interface is provided via the LCD module
-
Prepared place for installation of starting capacitor
Protective functions
Dry running protection with free sensor
Pump stop protection
Overload protection
Undervoltage protection
Overvoltage protection
Sensors that can be connected
-
Level rocker (ON/OFF signal)
-
Pressure switch (ON/OFF signal)
-
Liquid sample
Applications
- Used for water transfer from the low tank to the upper tank with liquid probe or level rocker
- Used for pump well with level rocker
- Used for deep well pump with a pressure switch
Main installation data
Working temperature: -25℃ — 55℃
Working humidity: 20%-90%RH, no condensation
Protection class: IP67
Mounting type: Wall mounting
Unit dimensions (L * W * H) 193*169*79 mm
