Art.nr: ahl2355154

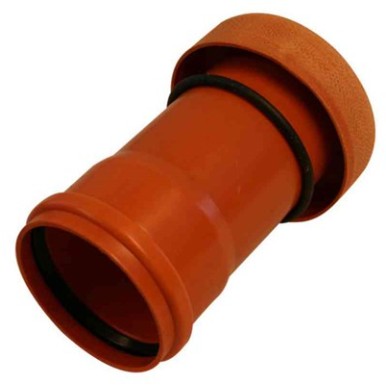

Transition pipe 110-100mm concrete sleeve to plain end PVC
25,30 €
PVC plain end to concrete pipe socket. The rubber ring of the concrete pipe is used as a seal. Check sealing depending on dimension of concrete pipe and its sealing ring.
- Dimension: 100×110 mm
- Dimension connection 1: DN 100
- Outside pipe diameter connection 2: 110 mm
- Connection 1: Smooth end
- Connection 2: Muff (push-in muff)
- Form: Rak
- Color: Maroon
- Material connection 1: PVC (polyvinyl chloride)
- Material connection 2: PVC (polyvinyl chloride)
- Material seal: SBR (styrene butadiene rubber)
- With gaskets: Yes
- Standard: EN1401
- Stiffness class: SN8
Product details
Article number:
ahl2355154
No files available.
PVC plain end to concrete pipe socket. The rubber ring of the concrete pipe is used as a seal. Check sealing depending on dimension of concrete pipe and its sealing ring.
- Dimension: 100×110 mm
- Dimension connection 1: DN 100
- Outside pipe diameter connection 2: 110 mm
- Connection 1: Smooth end
- Connection 2: Muff (push-in muff)
- Form: Rak
- Color: Maroon
- Material connection 1: PVC (polyvinyl chloride)
- Material connection 2: PVC (polyvinyl chloride)
- Material seal: SBR (styrene butadiene rubber)
- With gaskets: Yes
- Standard: EN1401
- Stiffness class: SN8
