Water meter well 600/2000mm

The most affordable water meter well on the market!

Substantial diameter of 600mm and a height of 2000mm (can easily be shortened with a regular saw)

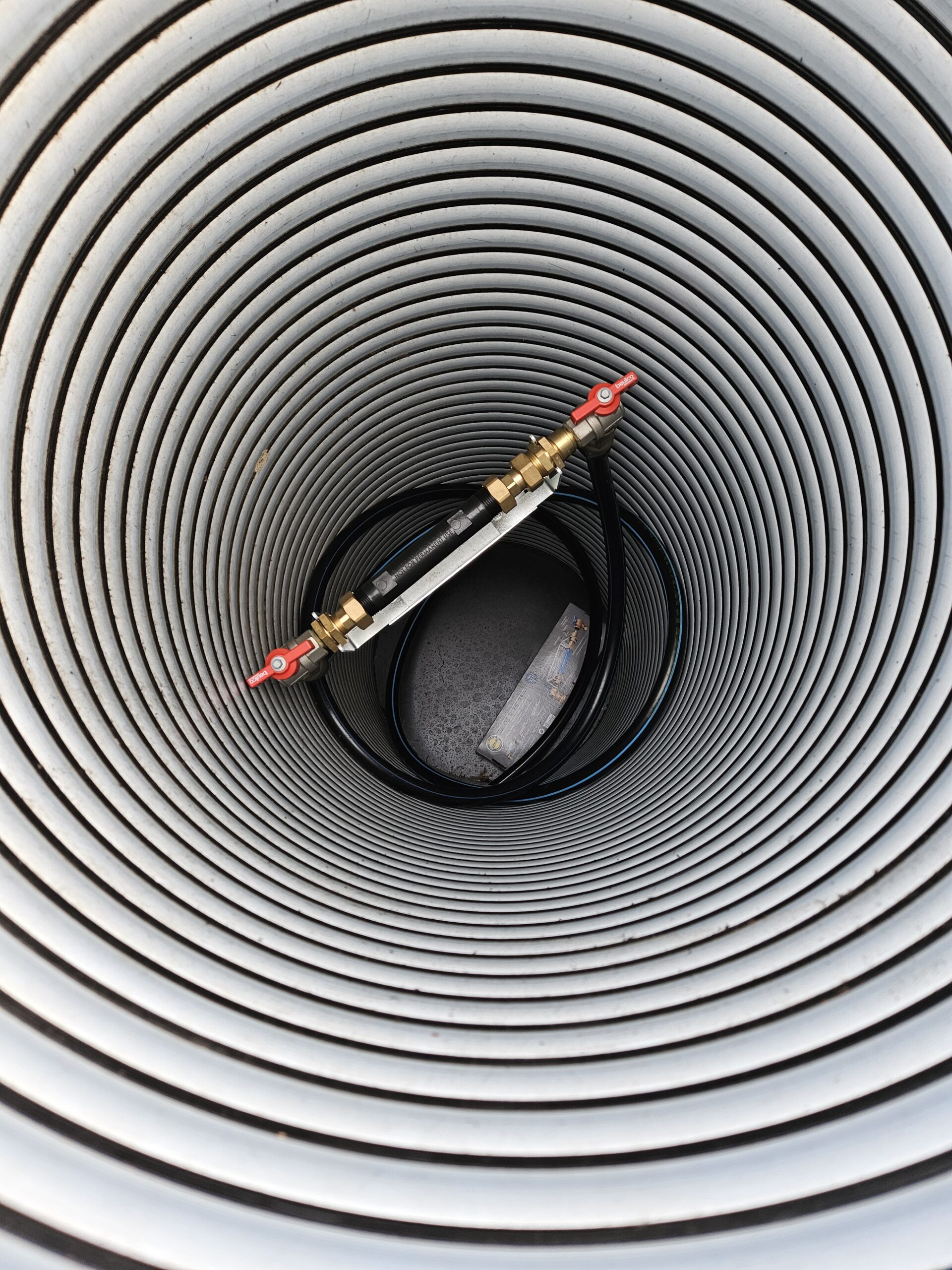

The well is equipped with a stainless steel water meter bracket (adjustable 190-220 mm) 1″ (25R) leaking nut for water meter Qn 2.5 with shut-off before and after.

Reading the water meter is easily done by lifting the meter with the included lifting tool.

Advantages
– Lift-up water meter bracket
– Sturdy welded anchor plate
– Tight connections
– Food grade fittings
– Strong double-walled manhole
– Extra insulation cap included

Size
Height 2000mm (can easily be shortened with a regular saw)
Inner diameter 600mm

Connections
Welded PE pipes

The water meter well is self-anchoring with a welded bottom keeps the well in place and prevents upwelling in places with high groundwater.

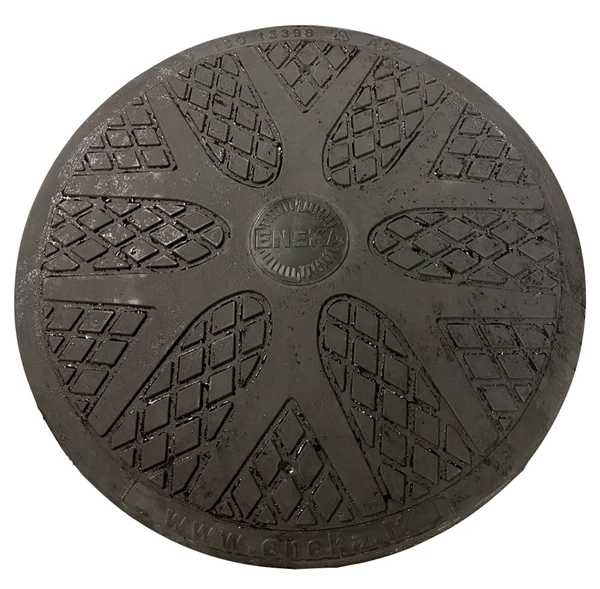

Approved lockable lid that can handle 3.5 tons of load
Total weight of the lid is 13kg of which the openable part weighs 8.5kg

The well is also available with movable cover D400 40 tons
